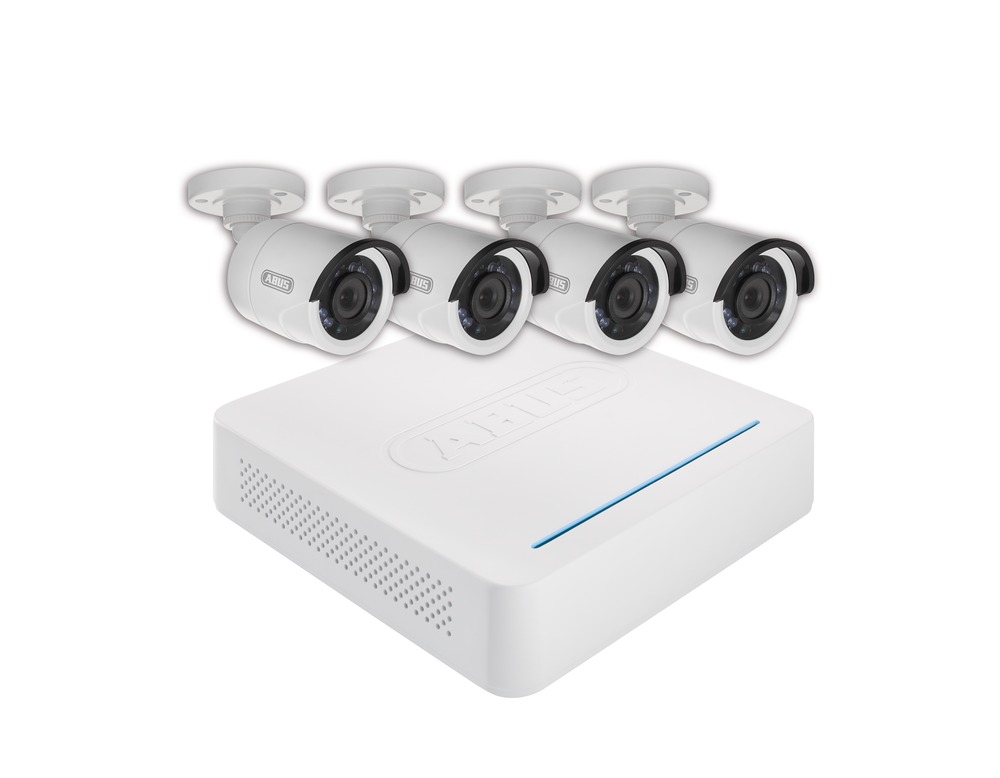

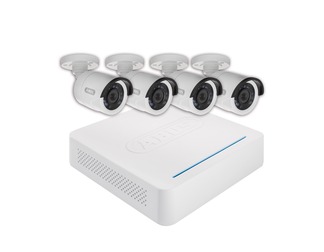

Video Surveillance Kit: Digital Recorder + 4 Outdoor Cameras (Art. no. TVVR30404)

Special product features:

  • Set: 4-channel recorder, 4 x day/night vision outdoor cameras, universal power supply unit and 4 x 20 m coaxial cable
  • Varied camera installation options - whether indoors or outdoors
  • Simple design and high protection class (IP66)
  • Internet and mobile access to live pictures and recordings
  • 500 GB capacity for approx. 5 weeks’ ''non-stop'' recording included
  • Simple and intuitive operation
  • Recording triggered by motion detection, schedule or permanent
  • 2 USB interfaces for quick and simple storing of important recordings
  • Detailed high-resolution analogue recording in real time
  • Mobile access using the ABUS iDVR app

Full kit for professional video surveillance
This video surveillance kit contains everything you need for professional outdoor surveillance, day or night, with 4 cameras. It includes a compact digital recorder with a built-in 500 GB hard drive, H.264 compression and VGA output, as well as 4 IR day/night outdoor cameras with plug-and-play accessories (4 x combined cables, router power supply unit, mouse).

State-of-the-art recording technology – intuitive operation
The compact DVR provides four channels for recording at up to 25 images/sec (real time) and five different resolutions (max. 960 x 480 pixels). Using H.264 compression, the video images are stored in excellent quality, take up very little memory on the hard drive and are optimised for fast network access. Depending on the setting, recording is started manually, according to a schedule, or through motion detection. Operation is very easy and self-explanatory.

Simple mounting indoors or outdoors
The kit includes 4 IR cameras with 600 TV lines and a 3.6 mm fixed lens (angle of view: 68°) with integrated IR LEDs for day/night operation outdoors (IP66). The router power supply unit and 20 m combination cable supplied allow fast and simple installation so that all 4 cameras are very quickly ready to use.

Technical data:

Art. no.: TVVR30404

4-Channel Digital Recorder - TVVR30004


Zum Produkt
Technical data
Art. no.: TVVR30004
Total network throughput (input/output): ( -/60 Mbits)
Total frame rate: 100 fps
Dimensions: 200 x 45 x 200 mm (W x H x D) mm
Alarming: Acoustic warning, OSD signal, e-mail
Views: 1 / 4
Recording resolution @ frame rate per camera: WD1, 4CIF, 2CIF, CIF, QCIF @ 25fps
Live view resolution: VGA: 1080P: 1920*1080/60Hz, 1280*1024/60Hz, 720P: 1280*720/60Hz，1024*768/60Hz, BNC Output: PAL: 704×576, NTSC: 704×480
Recording modes: Manual, schedule, motion detection
User levels: 2
Operating mode: triplex
Width: 200 mm
Storage: 1 x USB 2.0
DDNS: Yes
Total frame rate (PAL): 25
Simultaneous network access: 128 camera connections
Height: 45 mm
Compression levels: 6
Length: 200 mm
Power consumption: <13 w="" (without="" hdd)="">
Max. operating temperature: + 55 °C
Min. operating temperature: - 10 °C
Monitor outputs: 1 x BNC (1.0 Vp-p, 75 ohm), 1 x VGA
Net weight: 0.8 kg
Network access: 1 x RJ45 10/100 Mbps
Network functions: Live view, playback, data export
NTP: Yes
DC voltage supply: 12 VDC V
Storage medium: 1 x 2,5'' SATA HDD
OSD language: German, English, French, Dutch, Danish, Italian, Polish, Spanish, Swedish, Russian
Control: USB mouse
Power consumption: 1,5 A mA
Search modes: By event, date and time, smart search
Analog video channels: 4
Video compression: H.264
Pre-alarm/post-alarm memory: 0–30 sec. / 5–900 sec. s

2.5'' Internal hard disk drive with 500 GB capacity - TVVR30004H


Zum Produkt
Technical data
Art. no.: TVVR30004H
Dimensions: 70 x 10 x 100 (W x H x D) mm
Connections: S-ATA
Width: 70 mm
Height: 10 mm
Capacity: 500 GB
Length: 100 mm
Power consumption: max. 1,4 W
Max. operating temperature: 60 °C
Min. operating temperature: 0 °C
Net weight: 0.12 kg
AC voltage supply: - V
DC voltage supply: - V

Day/Night Mini Outdoor Camera - TVCC40010


Zum Produkt
Technical data
Art. no.: TVCC40010
Dimensions: 150 x 70 mm
Connections: Video signal (BNC), power supply (DC)
Image sensor: 1/3" DIS
Pixels (effective): 720 (H) x 480 (V) pixel
Aperture at minimum illumination (color): 0,1 Lux
Aperture at minimum illumination (IR): 0 Lux
Width: 70 mm
Focal length: 3,6 mm
Electronic shutter: 1/25 ~ 1/15.000 sek.
Backlight compensation: Yes
Height: 150 mm
Horizontal angle of view: 68,4 °
IR LEDs: 12
IR range: 10 m
Camera type: Day/night outdoor camera
Max. operating temperature: 50 °C
Max. humidity: max. 90 %
Min. operating temperature: - 20 °C
Minimum illumination (color): 0,1 Lux
Minimum illumination (IR): 0 Lux
Net weight: 0.36 kg
Lens: 3.6 mm, fixed lens mm
Noise reduction: > 52 dB
IP protection class: 66
DC voltage supply: 12 V
Power consumption: 420 mA
Day/night switching: Electromechanical IR-cut filter
TVL: 600 TVL
Video system: PAL / NTSC

Products included:

Compact digital recorder sets

Compact digital recorder sets

With the ABUS digital recorder camera kits, you are relying on a compact and cost-efficient whole solution. In private homes, four camera channels are usually sufficient for surveillance of the most important areas. The recording runs continuously, according to a schedule, or on an event-controlled basis – triggered by motion detection or alarms. ...
