Lever lock 465Z/40 frontal view Technical drawing
Level 3 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production
|||

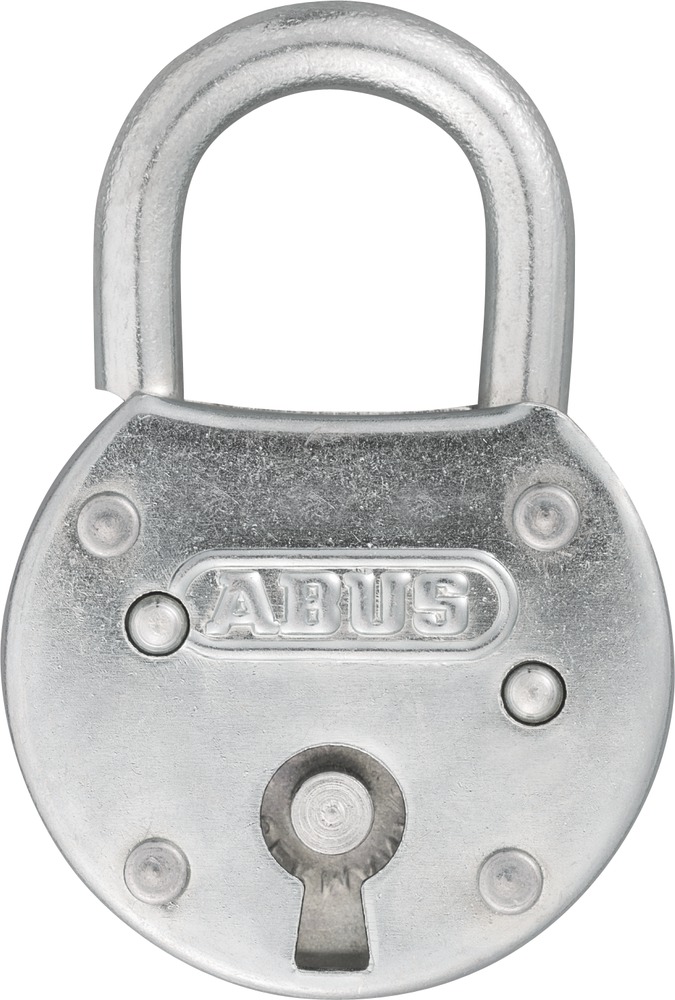

Lever padlock 465Z/40

With 3 levers, according to DIN 7465

Technology:

  • Solid steel lock with levers and swinging shackle
  • Upon request also available with side shackle, side chain to fix the lock

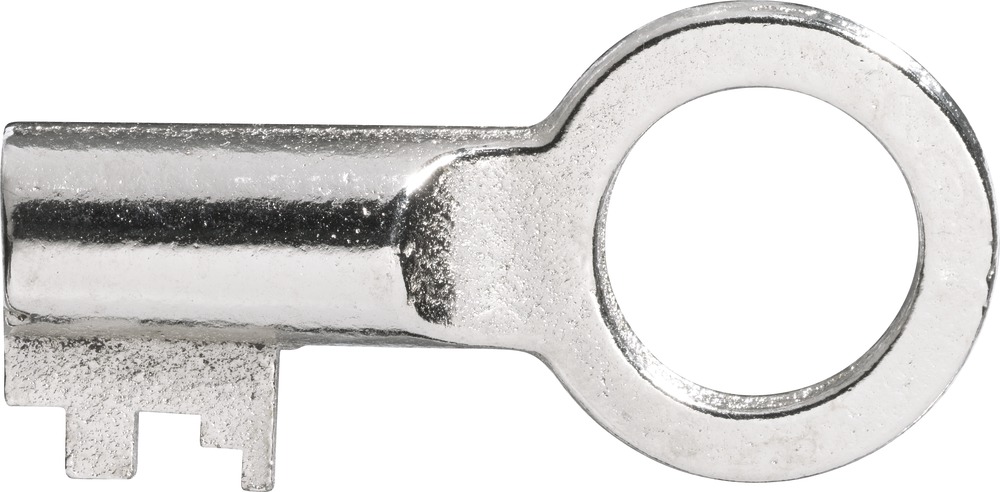

  • Key retaining: locking only with the key
  • 465Z/40-50: weather-resistant zinc-plating

Operation and use:

  • To secure valuables / goods of lesser value or at a low risk of theft
  • To lock e.g. cupboards, drawers, sheds, garden gates, bicycles baskets etc.

Variants:

  • Sizes: 40, 50 and 60 mm

Technical data:

Art. no.: 02036
Width a [mm]: 40
Horizontal clearance b [mm]: 17.5
Vertical clearance c [mm]: 20.5
Shackle diameter d [mm]: 5.5
Depth e [mm]: 11
Height f [mm]: 60

Variants:

Lever padlock 465Z/40
Art. no. 02036
Width a [mm]: 40
Level:
Lever padlock 465/60
Art. no. 02025
Width a [mm]: 60
Level:
Lever padlock 465Z/50
Art. no. 02042
Width a [mm]: 50
Level: 3

Downloads:

Tumbler lock

Lever

The tried and tested ABUS tumbler locks that meet DIN 7465 are the universal classics. The galvanised tumbler lock is also suitable for outside use. ABUS tumbler locks are available with side chain or integrated keyhole cover. ...
