Technical drawing
||||

Padlock brass 55/60

Padlock Classic and multi purpose

Technology:

  • Body made of solid brass
  • Inner components made of non-corrosive materials
  • Hardened shackle
  • Precision pin tumbler cylinder

Operation and use:

  • Basic protection
  • Cobra loop cables, doors, gates, cabinets, lockers, toolboxes, cellar windows, sheds, switchgears, barriers

Tips:

  • This classic lock is available in different sizes

Technical data:

Art. no.: 02859
Width a [mm]: 58
Horizontal clearance b [mm]: 32
Vertical clearance c [mm]: 32
Shackle diameter d [mm]: 8
Depth e [mm]: 16
Height f [mm]: 84
Weight [g]: 326

Variants:

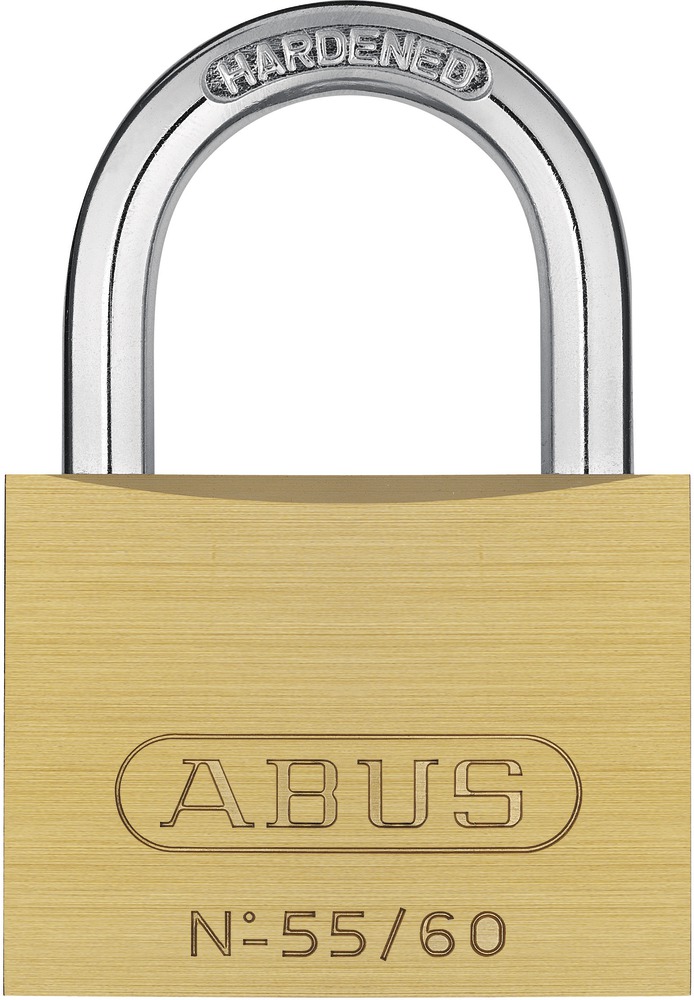

Padlock brass 55/60
Art. no. 02859
Width a [mm]: 58
Level:

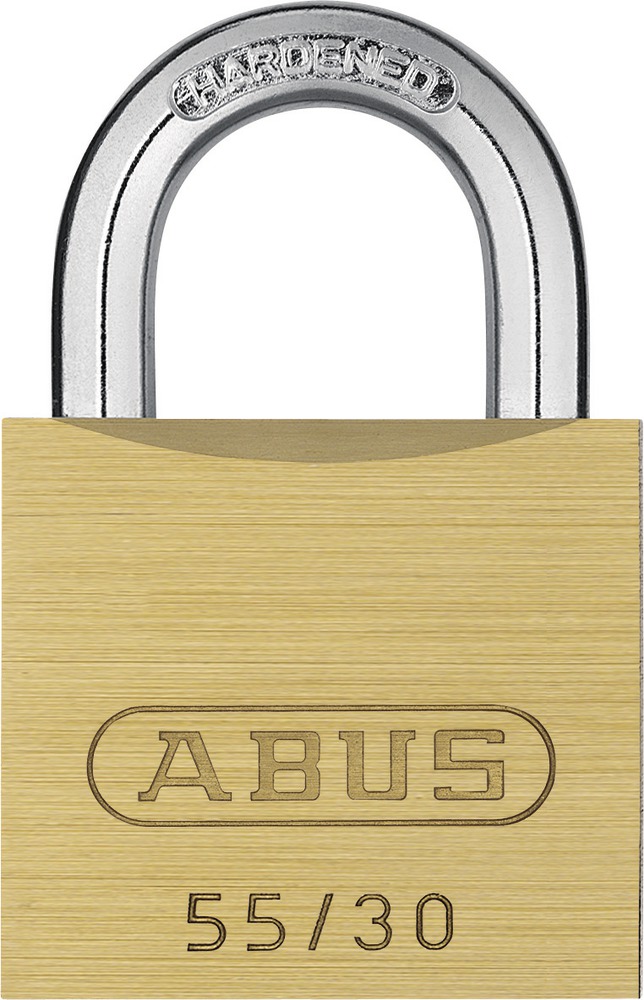

Padlock brass 55/30
Art. no. 02854
Width a [mm]: 29
Level:

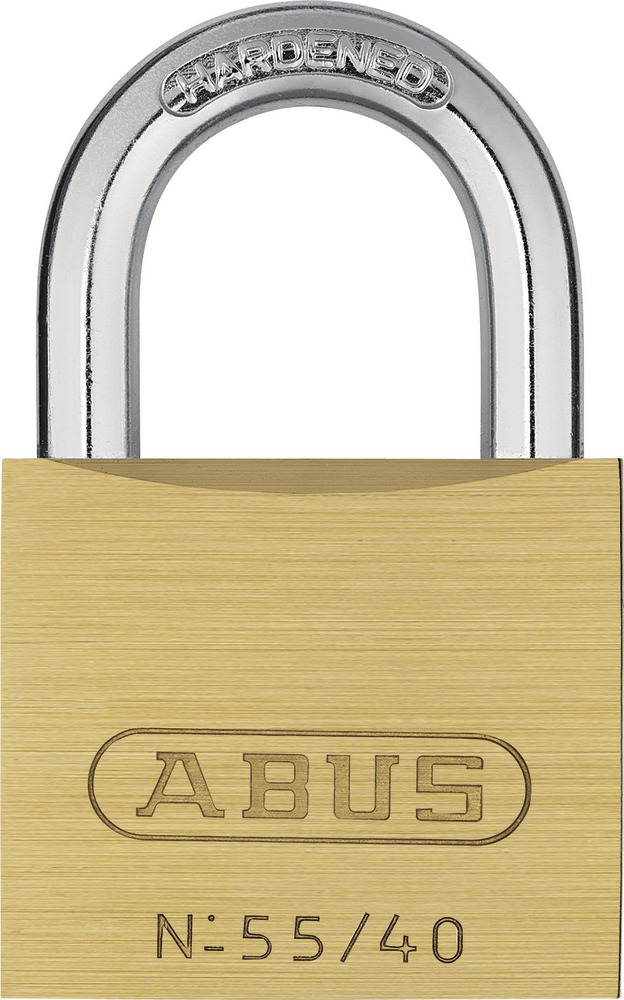

Padlock brass 55/40
Art. no. 02856
Width a [mm]: 38
Level:

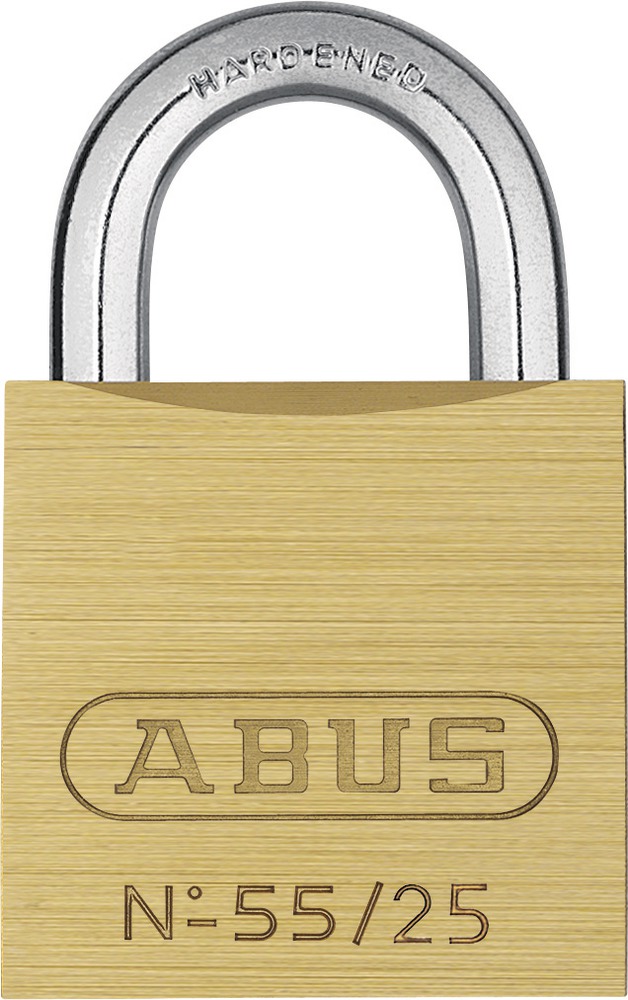

Padlock brass 55/25
Art. no. 02853
Width a [mm]: 24
Level:

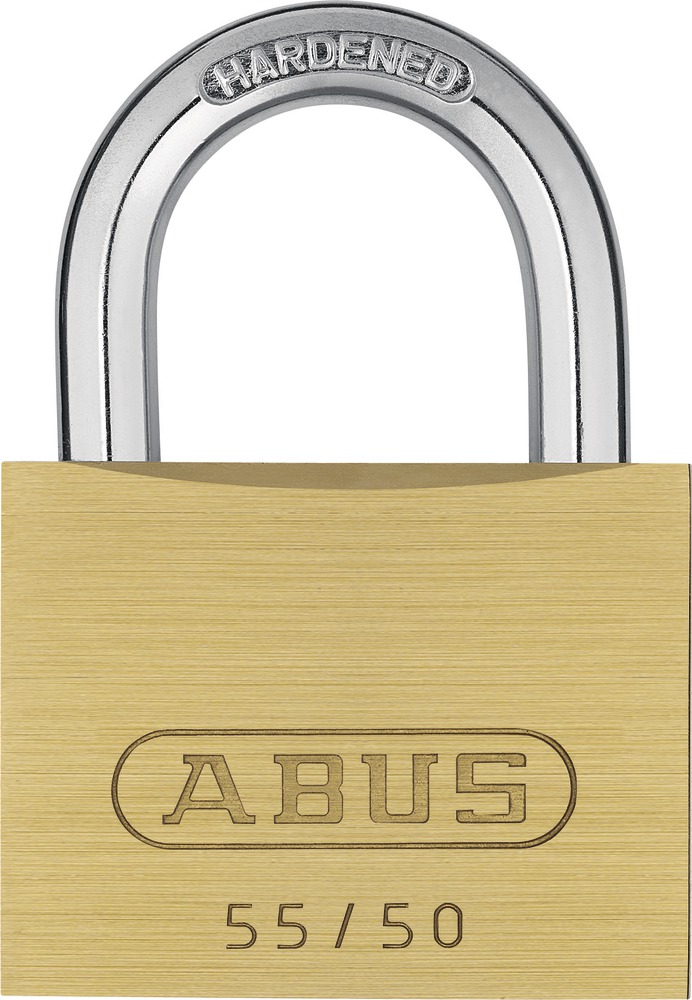

Padlock brass 55/50
Art. no. 02858
Width a [mm]: 48
Level:

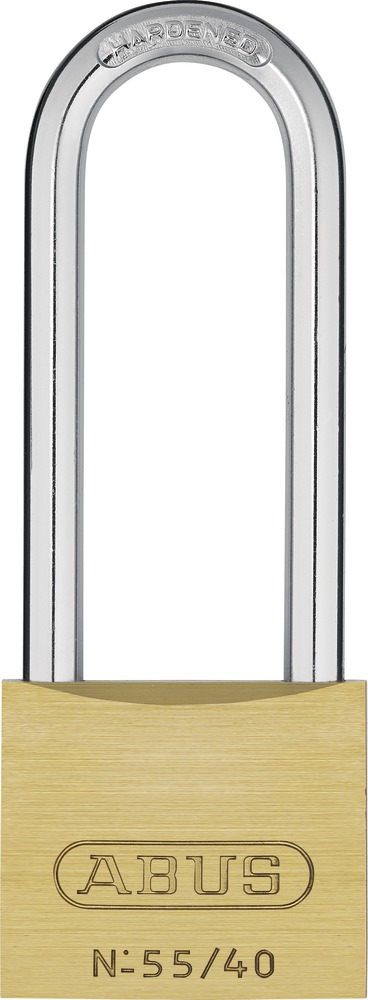

Padlock brass 55/40HB63
Art. no. 04762
Width a [mm]: 38
Level:
